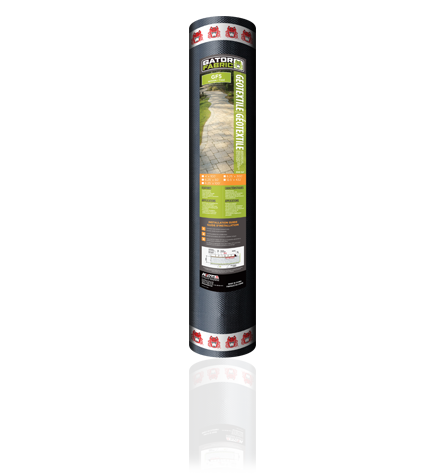

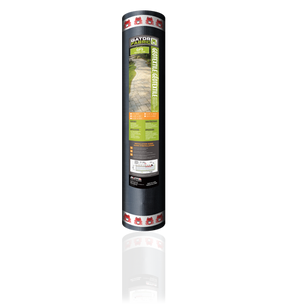

Alliance Gator Fabric GF5 Woven Geotextile
Alliance Gator Fabric GF5 Woven Geotextile - 4 ft x 100 ft is backordered and will ship as soon as it is back in stock.
Ships same day on weekday orders placed before the 14:00 ET cut-off.
Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.
Request a pallet quoteHow much do I need?Call (856) 418-4895
- Brand
- Alliance
- Type
- Landscape Fabric
- Sizes
- 4 ft x 100 ft, 6.25 ft x 100 ft, 6.25 ft x 300 ft, 12.5 ft x 432 ft
About this item
- 200 lbf (890 N) grab tensile in both directions, ASTM D4632.
- Only 15 percent elongation at break, against 75 to 80 percent for the non-wovens. That low stretch is the whole point.
- 4.0 oz per sq yd (136 gsm) woven polypropylene yarns. Note the grade number tracks the strength class, not the weight.
- Built for load, not flow: driveways, pathways, sidewalks and retaining wall toes.
- Leveling pad reinforcement under retaining wall foundations.
Shipping, pick-up and returns
Shipping, pick-up and returns
Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.
Alliance Gator Fabric GF5 Woven Geotextile - 4 ft x 100 ft is backordered and will ship as soon as it is back in stock.
How many bags do I need?
Coverage per bag comes from the manufacturer's data sheet for this exact sand.
Ships Same DayFrom our NJ warehouse
200 lbf Grab TensileAt only 15% elongation
Woven PolypropyleneReinforcement grade
Real Humans(856) 418-4895
Why Gator Fabric GF5?
Woven Reinforcement Fabric, 200 lbf at 15% Stretch
On soft or clay ground the problem is not filtration, it is that the base has nothing to push against. A high-modulus woven takes tension straight away and spreads the load.
Full description and specs
200 lbf (890 N) grab tensile
In both directions, ASTM D4632.
Only 15 percent elongation at break
Against 75 to 80 percent for the non-wovens. That low stretch is the whole point.
4.0 oz per sq yd (136 gsm)
Woven polypropylene yarns. Note the grade number tracks the strength class, not the weight.
Built for load
Not flow: driveways, pathways, sidewalks and retaining wall toes.
How to Install Gator Fabric GF5
The short version. Always follow the Alliance data sheet.
-
Excavate and compact
The subgrade to within 3/8 in.
-
Roll the fabric out
Flat, and stretch out every wrinkle. Wrinkles concentrate stress.
-
Overlap seams by at least 12 in
-
Place base aggregate
Directly on top and compact as normal.
Test a small area first.
Description
Description
Woven Reinforcement Fabric, 200 lbf at 15% Stretch
GF5 is the reinforcement grade: 200 lbf grab tensile at only 15 percent elongation. Non-woven fabrics stretch 75 to 80 percent before they take load; a woven takes it almost immediately, which is what stabilizes a base over poor or clay soil.
|
Ships Same Day From our NJ warehouse |
200 lbf Grab Tensile At only 15% elongation |
|
Woven Polypropylene Reinforcement grade |
Real Humans (856) 418-4895 |
Why Contractors Ask for Gator Fabric GF5 by Name
On soft or clay ground the problem is not filtration, it is that the base has nothing to push against. A high-modulus woven takes tension straight away and spreads the load.
- 200 lbf (890 N) grab tensile in both directions, ASTM D4632.
- Only 15 percent elongation at break, against 75 to 80 percent for the non-wovens. That low stretch is the whole point.
- 4.0 oz per sq yd (136 gsm) woven polypropylene yarns. Note the grade number tracks the strength class, not the weight.
- Built for load, not flow: driveways, pathways, sidewalks and retaining wall toes.
- Leveling pad reinforcement under retaining wall foundations.
Gator Fabric GF5 Specifications
| Weight | 4.0 oz per sq yd (136 gsm), not 5 oz, despite the name |
| Type | Woven polypropylene yarns, high modulus |
| Grab tensile | 200 lbf (890 N), machine and cross direction, ASTM D4632 |
| Grab elongation | 15 percent both directions |
| Seam overlap | Minimum 12 in (30 cm) |
| Roll sizes | 4x100 (12 lb), 6.25x100 (19 lb), 6.25x300 (57 lb), 12.5x432 (164 lb) |
Where Gator Fabric GF5 Works
Alliance rates GF5 for:
- Driveways, pathways and sidewalks
- Retaining wall toe walls and leveling pads
- Poor and clay soil foundation reinforcement
- Soil stabilization and separation
- Permeable foundations
Installation and Selection Notes (Straight From the Manufacturer)
Overlap every seam by a minimum of 12 in (30 cm). A butted seam is a failure point.
Lay it over leveled, compacted soil within a 3/8 in (10 mm) tolerance, and stretch it so there are no folds or wrinkles under the aggregate.
A woven has low flow-through compared with a non-woven. Choose it for load spreading, not for drainage. If you need water to move through the layer, use GF3.5 or GF4.4.
Not sure if your project qualifies? Call us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.
How to Install Gator Fabric GF5
The full step by step guide is in the official documentation below. Here is the shape of the job:
- Excavate and compact the subgrade to within 3/8 in.
- Roll the fabric out flat, and stretch out every wrinkle. Wrinkles concentrate stress.
- Overlap seams by at least 12 in.
- Place base aggregate directly on top and compact as normal.
Woven or Non-Woven? The Decision in One Line
Woven for strength under load. Non-woven for water moving through.
- Soft or clay subgrade under a driveway, woven GF5. It takes tension at 15 percent stretch and spreads the wheel load.
- French drain, wall backfill, anywhere water must pass, non-woven GF3.5 or GF4.4.
- Under Gator Base panels: GF4.4, which Alliance specifies by name.
- Weed control in a planting bed: GF20 Polyspun, and none of the above.
Quick Answers
Why is it called GF5 if it is 4 oz?
The number tracks its 200 lbf strength class rather than the weight. Alliance publishes 4.0 oz per sq yd on the data sheet.
What does 15 percent elongation mean in practice?
It reaches full strength almost immediately under load rather than stretching first. That is what makes it a reinforcement fabric.
Can I use it for drainage?
It is not the right choice. A woven passes far less water than a non-woven. Use GF3.5 or GF4.4 where flow matters.
Can I use it under a retaining wall?
Yes, Alliance lists retaining wall toe walls and leveling pads as intended applications.
How much overlap?
Minimum 12 in on every seam.
Official Alliance Gator Documentation
Download the GF5 TDS (PDF) →
Documents are published by Alliance Gator. They open in a new tab. Every sheet we carry is also listed in our TDS and SDS library.
Pairs Well With
- Gator Grid 30-30, geogrid, for wall and slope reinforcement beyond what a fabric does.
- Gator Fabric GF4.4, the non-woven separation grade.
- All landscape fabric, compare the full range.
Order before our daily cutoff and your Gator Fabric GF5 ships today from New Jersey.
Questions about your project? Call (856) 418-4895 and you will get a real person who works with geotextiles every day.
Data sheets
Data sheets
The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
