Gator Base vs Gravel: Which Paver Base Fits Your Project?

Gator Base vs gravel is one of the first decisions on any paver patio, walkway or fire pit project. Both are ways to build the foundation that holds your pavers flat and drains water away. A traditional base is a thick layer of crushed stone, compacted in place. Gator Base from Alliance Gator is an interlocking plastic panel that sits on a thin layer of compacted sand and takes the place of that stone.

The short answer: for foot traffic projects, especially on tight or hard to reach sites, Gator Base can cut down the digging and hauling. For driveways, parking pads or anything that carries a vehicle, stay with a compacted aggregate base, because the Alliance data sheet says Gator Base is for pedestrian use only.

Below, our team compares the two using the Alliance Gator Base technical data sheet (updated May 6, 2025).

What Gator Base is, and what a gravel base does

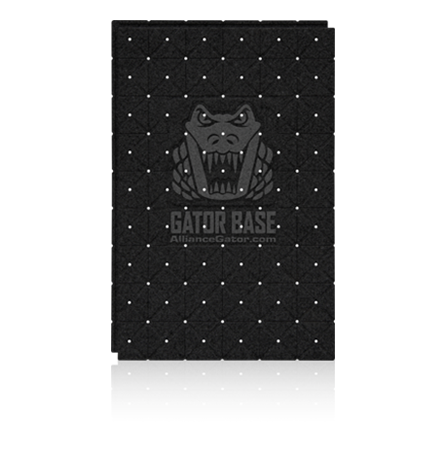

Gator Base paver base panels

Alliance Gator Base interlocking paver base panels are made from lightweight, high density expanded polypropylene (EPP). According to the data sheet, each panel is 3/4 in thick, has tongue and groove edges, drains water through built in channels, weighs 1.32 lb and is equivalent to 288 lb (130 kg) of crushed stone. Overall size is 24.25 in x 36.25 in, with a usable surface of 5.79 sq ft, and panels come 10 to a pack. Alliance lists an insulating value of R-3.6 per inch of thickness and calls the panel a thermal blanket. It also describes the material as 100% recyclable and says it does not degrade in the soil when buried. Techniseal's NextBase panel system is another panel base we carry for pedestrian installations; install it to its own data sheet.

A traditional compacted aggregate base

A gravel base is crushed stone placed in layers over a compacted subgrade and compacted until it locks together, with bedding sand screeded on top. In the comparison diagram on the Gator Base data sheet, the "traditional way" for a paver patio is 1 in of C-33 bedding sand over 6 in of compacted crushed stone, with Gator Fabric GF 4.4 underneath. Its depth should be set by the soil, the climate and the traffic it has to carry.

Gator Base vs gravel: side by side

When weighing Gator Base vs gravel, start with this table. Gator Base figures come from the Alliance data sheet; the gravel column describes general practice.

Factor	Compacted gravel base	Gator Base panels
What supports the pavers	Compacted crushed stone plus a bedding sand layer	3/4 in EPP panel on 1/2 in of compacted sand (or uncompacted ASTM No. 9 stone) over Gator Fabric GF4.4
Excavation	Deep enough for the full stone layer plus bedding sand and paver	Saves a minimum of 6 in of additional excavation compared with the traditional method shown
Traffic	Pedestrian or vehicular, when the base is designed for it	Pedestrian use only
Material handling	Bulk stone delivered by truck and moved by wheelbarrow or loader	1.32 lb per panel, carried by hand
Drainage	Depends on the aggregate and the subgrade	Drains through channels; vertical permeability over 100 in per hour (EN 12616)
Load limits	Set by the base design	8 psi dynamic; 2 psi static (4:1 safety factor)

Where Gator Base makes the most sense

The data sheet lists these uses and site conditions:

• Restricted access areas, narrow workspaces and narrow alleys
• Projects up a hill or near stairs
• Jobs where speed of construction is critical
• Sites where material storage in the street is prohibited
• Patios, sidewalks, walkways, paths and pool surrounds
• Seating walls and fire pits up to 18 in (45 cm) high, and heated paving systems
• Concrete pavers and natural or wet cast stone, plus porcelain tiles and slabs through the Gator Tile system

Alliance also lists 50% savings on the costs of soil excavation and a labor cost reduction of at least 20%. Those are the manufacturer's figures; your savings will depend on your site.

Where a compacted gravel base is still the right call

In any Gator Base vs gravel decision, vehicle traffic settles it: Gator Base is for pedestrian use only. Choose a traditional aggregate base when:

• Vehicles will drive or park on it. Driveways, parking pads and service access paths need an aggregate base designed for vehicle loads.
• Something heavy will sit on it permanently and exceeds the static load limit described in the next section.
• The project is outside the guide's scope, such as a wall taller than the 18 in seating walls and fire pits the data sheet covers.

The two can also work together: the data sheet shows crushed stone under the sand layer to raise the final grade on a Gator Base installation.

Understanding Gator Base load capacity

Alliance gives two load limits for Gator Base:

• Dynamic (in motion): 8 psi, or 1,152 lb per sq ft.
• Static (permanent): 2 psi, or 288 lb per sq ft of surface including height, using a 4:1 safety factor.

The data sheet works through an example. A seating wall section 18 in high, 12 in deep and 12 in wide is 1.5 cubic feet. At 150 lb per cubic foot for concrete, that section weighs 225 lb, which is inside the 288 lb static limit. Run the same math for any heavy feature that stays in place, and remove all organic matter under the Gator Base.

How Gator Base installation works, step by step

This is a summary of the installation instructions in the Alliance data sheet, which also tells you to follow ICPI Tech Spec 2 and 9 for compaction. Read the full data sheet before you start.

1. Excavate. Total depth is the Gator Fabric GF4.4, plus 3/4 in of sand or ASTM No. 9 stone, plus the 3/4 in Gator Base, plus your paver. Dig 6 in wider than the paved area, or 12 in wider for a seating wall or fire pit. Call your local utilities before digging.
2. Level and compact the soil. Plan a 2% slope away from any structure, especially the house. Compact with a vibrating plate or hand tamper, then roll a pipe across the surface to check for bumps or hollows larger than 3/8 in.
3. Add fabric and sand. Cover the area and sides with Alliance Gator Fabric GF4.4 non woven geotextile. Screed 3/4 in of sand between two 3/4 in pipes set 4 to 6 ft apart, remove the pipes and fill the hollows, then moisten and compact the sand to 1/2 in. ASTM No. 9 stone needs no compaction.
4. Lay the panels. Place the Gator Base in a staggered pattern, make sure every panel locks in, and trim with a utility knife while keeping the 6 in overhang.
5. Set pavers and edging. Place pavers directly on the panels (1/2 in of C-33 bedding sand on top of the Gator Base is also accepted). Install Gator Edge on the Gator Base against the pavers and drive a Gator Base screw in every second hole.
6. Fill the joints. The data sheet uses Alliance Gator Maxx G2 polymeric sand, filled to 1/8 in below the top of the paver or below the chamfer, then activated by watering 30 sq ft for 30 seconds starting at the lowest point. It notes Gator Nitro and Gator Nitro-X could also be used. Follow the instructions on your bag and the Gator Maxx G2 data sheet.

Fire pits on Gator Base

Alliance requires a thermal barrier between the Gator Base and the heat source, and lists the panel's melting point at 248 to 356°F. The data sheet shows four options: a metal fire bowl insert with at least a 4 in air gap underneath, refractory brick on the sides and base, 4 in of sand on the pavers, or 8 in of sand directly over the Gator Base.

Over an existing concrete slab

For an overlay, the data sheet cites ICPI Tech Spec 10: a 2 in drainage hole filled with 1/4 in or 3/8 in clean stone every 10 ft, starting at the lowest point, with crushed stone used to raise the final level.

Building a traditional compacted gravel base

For comparison, here is how a conventional base goes together. Layer depths should come from ICPI guidance, your paver manufacturer and local conditions.

1. Excavate past the paved edge, remove organic soil, then grade and compact the subgrade with the slope built in.
2. Lay a geotextile where the soil calls for one.
3. Place crushed stone in lifts, compacting each lift before adding the next.
4. Screed the bedding layer, set the pavers, install edge restraint, then compact and fill the joints.

It takes more digging and hauling, but it is the route for surfaces that carry vehicles.

Frequently asked questions

Can Gator Base be used for a driveway?

No. The Alliance data sheet states Gator Base is for pedestrian use only. Driveways need a compacted aggregate base designed for vehicles.

How much digging does Gator Base save compared with gravel?

Alliance states Gator Base saves a minimum of 6 in of additional excavation and replaces 6 in of compacted crushed stone.

Does the soil under Gator Base still need compaction?

Yes. The data sheet calls for compacting the native soil with a vibrating plate or hand tamper and following ICPI Tech Spec 2 and 9.

How many Gator Base panels does a patio need?

Each panel has a usable surface of 5.79 sq ft, and the panels must extend 6 in past the pavers on each side (12 in for seating walls and fire pits). Measure the full panel area, divide by 5.79, round up and allow for trimming. Panels come in packs of 10.

Which joint sand works on Gator Base?

The Gator Base data sheet uses Gator Maxx G2 and notes Gator Nitro and Gator Nitro-X could also be used. Use our polymeric sand calculator to estimate bags for your joint width.
