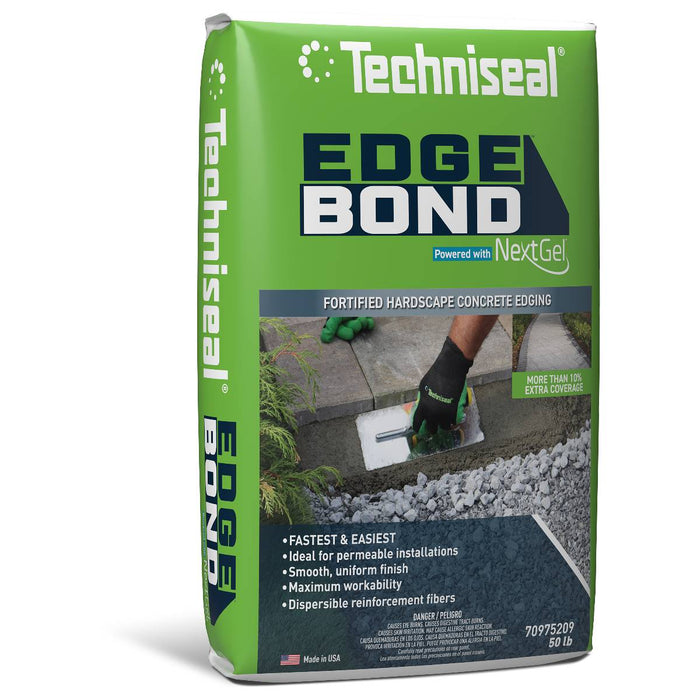

Techniseal Edge Bond NextGel Fortified Hardscape Concrete Edging, 50 lb Bag
A Troweled Concrete Edge With NextGel In It, And Over 10 Percent More Coverage
Edge Bond is a polymer modified hardscape concrete edging powered by the same NextGel technology behind Techniseal jointing sands. Instead of nailing a plastic strip around the perimeter, you trowel a continuous reinforced concrete edge that locks the outside course. Techniseal claims the fastest and easiest installation on the market and more than 10 percent extra coverage over comparable products. One 50 lb bag covers 16 to 20 linear feet.
|
16 to 20 Linear Feet Per 50 lb bag |
NextGel Technology Fastest and easiest install per Techniseal |
|
10% Extra Coverage More than comparable products |
Permeable Friendly Ideal for permeable installations |
Why Contractors Ask for Edge Bond by Name
Plastic edging fails in a predictable way: the spikes heave, the strip lifts, and the outside course walks. A troweled concrete edge has no fastener to work loose.
- More than 10 percent extra coverage. Techniseal calls this out directly, and across a large perimeter it is a real difference in bag count.
- NextGel technology. The same core technology behind their jointing sands, applied to an edging compound.
- Dispersible reinforcement fibers. The fiber network gives the cured edge tensile strength, which is what stops a thin haunch cracking off under a mower wheel or a tire.
- Ideal for permeable installations. Permeable systems give spikes almost nothing to bite into, so a bonded edge is the right answer there.
- It leaves a smooth, uniform finish, which matters on the sections of edge that stay visible.
- It disappears below grade. Nothing plastic showing at the perimeter, which matters on premium natural stone and porcelain work.
- Very broad surface approval: large slabs, highly textured surfaces, clay pavers, natural stone, concrete pavers and slabs, interlocking pavers, and wet cast pavers.
- Rated flat and sloped, for residential, commercial, and public projects.
Edge Bond Specifications
| Product Type | Polymer modified concrete hardscape edging |
| Technology | NextGel |
| Bag Size | 50 lb |
| Coverage | 16 to 20 linear feet per bag |
| Reinforcement | Dispersible reinforcement fibers |
| Finish | Smooth and uniform |
| Surface Level | Flat and sloped |
| Permeable Systems | Suitable |
| Approved Surfaces | Large slabs, highly textured surfaces, clay pavers, natural stone, concrete pavers, concrete slabs, interlocking pavers, wet cast pavers |
| Project Types | Residential, commercial, and public |
| Manufacturer | Techniseal |
Techniseal gives 16 to 20 linear feet per 50 lb bag and notes coverage varies with the shape and size of the edging you trowel. A heavier haunch on a driveway uses more than a light edge on a garden path, so measure your open perimeter and plan against the low end.
Where Edge Bond Works
Edge Bond suits any perimeter that has to hold without hardware in the ground.
- Patio and walkway perimeters meeting soil, mulch, or lawn
- Permeable paver installations where spikes have nothing to grip
- Driveway edges carrying vehicle loads
- Curved and radius edges where rigid strip is a fight
- Natural stone and porcelain perimeters where plastic would show
- Large format slab installations
- Commercial and public projects
- Sloped installations
Where Edge Bond Should NOT Be Used (Straight From the Manufacturer)
Do not apply over frozen ground or into standing water in the trench.
Do not over water the mix to make it easier to trowel. Extra water is the fastest route to a weak, crumbly edge.
This is a structural edge, not a jointing product. It goes against the outside face and the base, not into the paver joints.
Read the current technical data sheet for water ratio, cure time, and the wait before jointing and final compaction.
Not sure if your project qualifies? Call or text us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.
How to Use Edge Bond
Follow the official Techniseal instructions, linked below. This is the shape of the job:
- Remove the excess bedding material along the outside of the perimeter course, down to the compacted base.
- Mix the bag with water to the ratio the technical data sheet specifies.
- Trowel the mixture into the trench, carrying it up the side of the paver as the instructions direct.
- Work the edge smooth and consistent, bag by bag around the perimeter.
- Observe the cure time before jointing and final compaction.
- Backfill the outside of the edge with soil, mulch, or sod once cured.
Plan your bag count against 16 linear feet rather than 20 if the design calls for a substantial haunch. Coming up one bag short at the end of a run is the common mistake.
Quick Answers
How many bags do I need?
Measure the total open perimeter, meaning the edge that is not against a house, curb, or wall, then divide by 16 to 20 linear feet per bag and round up.
Can I use it on a permeable patio?
Yes. Techniseal calls it ideal for permeable installations, which is where plastic edging performs worst.
Will it show?
No. It is troweled below grade and backfilled, so nothing is visible at the perimeter once the job is done.
Does it work on curves?
Yes, and that is one of its advantages. A troweled edge follows any radius without cutting or connectors.
Can I use it on a driveway?
Techniseal rates it for residential, commercial, and public projects. Check the technical data sheet for the traffic guidance on your specific application.
What surfaces is it approved for?
Large slabs, highly textured surfaces, clay pavers, natural stone, concrete pavers and slabs, interlocking pavers, and wet cast pavers.
Official Techniseal Documentation
Documents are published by Techniseal and open in a new tab. Every sheet we carry is also listed in our TDS and SDS library.
Pairs Well With
- Techniseal HP NextGel or SmartSand for the joints once the edge has cured
- Techniseal NextBase for the base system beneath
- Techniseal paver edging and nails if a plastic restraint suits part of the job better
