Alliance Gator Spacers for Porcelain Tile
Free hat or shirt with every order over $600. Pick your size in the cart, or see the gear.
Alliance Gator Spacers for Porcelain Tile - 1/8 in Blue, 50 pack is backordered and will ship as soon as it is back in stock.
Ships same day on weekday orders placed before the 14:00 ET cut-off.
Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.
Request a pallet quoteHow much do I need?Call (856) 418-4895
- Brand
- Alliance
- Type
- Paver Base Products
- Sizes
- 1/8 in Blue, 50 pack, 3/16 in Grey, 50 pack, 1/4 in Black, 50 pack
About this item
- Uniform joint spacing at 1/8, 3/16 or 1/4 in, color coded so you can see at a glance which you are using.
- Vertical and horizontal alignment in one component.
- Load transfer between tiles, which is what gives a monolithic surface rather than independent slabs.
- Cuttable. The disk can be cut into a half or quarter for edges, and the bars can be removed entirely to leave a flat disk when you need support mid-field on a large tile.
- Part of the Gator Tile System with Gator Base, Gator Block Bond and Gator Tile Edge.
Shipping, pick-up and returns
Shipping, pick-up and returns
Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.
Alliance Gator Spacers for Porcelain Tile - 1/8 in Blue, 50 pack is backordered and will ship as soon as it is back in stock.
How many bags do I need?
Coverage per bag comes from the manufacturer's data sheet for this exact sand.
Ships Same DayFrom our NJ warehouse
50 Per Pack1/8, 3/16 and 1/4 in
6 in Disk1/2 in bar height
Real Humans(856) 418-4895
Why Gator Spacers?
Set Porcelain Tile Directly on Gator Base
Exterior porcelain is unforgiving. A tile that sits a millimetre proud of its neighbour is a trip hazard and it catches every low sun. Spacers fix alignment in all three axes at once.
Full description and specs
Uniform joint spacing
At 1/8, 3/16 or 1/4 in, color coded so you can see at a glance which you are using.
Vertical and horizontal alignment
In one component.
Load transfer between tiles
Which is what gives a monolithic surface rather than independent slabs.
Cuttable
The disk can be cut into a half or quarter for edges, and the bars can be removed entirely to leave a flat disk when you need support mid-field on a large tile.
How to Use Gator Spacers
The short version. Always follow the Alliance data sheet.
-
Install Gator Base panels
Extending 6 in beyond the tiled area on all sides.
-
Set the spacers
At the tile corners, cutting to half or quarter disks at the edges and perimeter.
-
Apply Gator Block Bond XP
Onto the spacers and set the tiles.
-
Fit Gator Tile Edge
Around the perimeter, fastened to the Gator Base with Gator Base Screws.
Test a small area first.
Description
Description
Set Porcelain Tile Directly on Gator Base

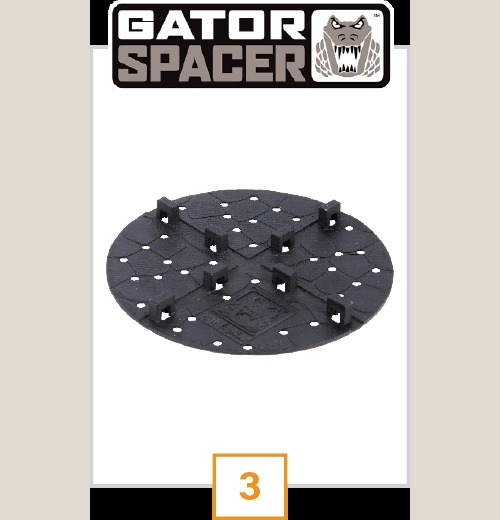

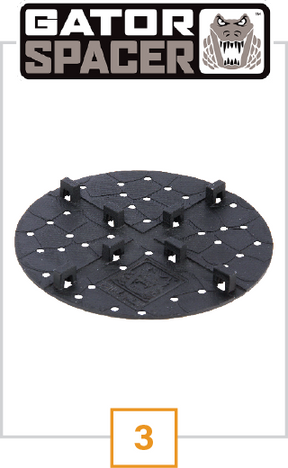

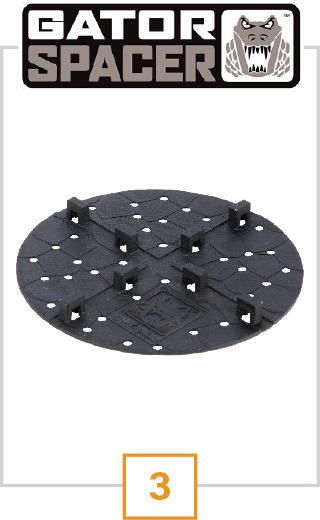

Gator Spacers are the piece that makes the Gator Tile System work: 6 inch disks with 1/2 inch bars that hold uniform joints, keep tiles level in both directions, and transfer load between them so the surface behaves as one. 50 per pack, three joint sizes.
|
Ships Same Day From our NJ warehouse |
50 Per Pack 1/8, 3/16 and 1/4 in |
|
6 in Disk 1/2 in bar height |
Real Humans (856) 418-4895 |
Why Contractors Ask for Gator Spacers by Name
Exterior porcelain is unforgiving. A tile that sits a millimetre proud of its neighbour is a trip hazard and it catches every low sun. Spacers fix alignment in all three axes at once.
- Uniform joint spacing at 1/8, 3/16 or 1/4 in, color coded so you can see at a glance which you are using.
- Vertical and horizontal alignment in one component.
- Load transfer between tiles, which is what gives a monolithic surface rather than independent slabs.
- Cuttable. The disk can be cut into a half or quarter for edges, and the bars can be removed entirely to leave a flat disk when you need support mid-field on a large tile.
- Part of the Gator Tile System with Gator Base, Gator Block Bond and Gator Tile Edge.
Gator Spacers Specifications
| 1/8 in (3.2 mm) | Blue. 50 per pack, 6 packs per box |
| 3/16 in (4.8 mm) | Grey. 50 per pack, 6 packs per box |
| 1/4 in (6.4 mm) | Black. 50 per pack, 6 packs per box |
| Disk diameter | 6 in (15 cm) |
| Bar height | 1/2 in (13 mm) |
| Coverage, 16x16 tile | sq ft x 0.4 |
| Coverage, 18x18 and 20x20 | sq ft x 0.35 |
| Coverage, 24x24, 24x48, 16x32 | sq ft x 0.75 |
| Coverage, 36x36 | sq ft x 0.29 |
Use Alliance's multipliers above: a 200 sq ft patio in 24x24 tile needs 200 x 0.75 = 150 spacers, so three packs. Call (856) 418-4895 if you want it checked against your tile size.
Where Gator Spacers Works
Alliance rates Gator Spacers for:
- Exterior porcelain tile patios
- Pool surrounds and terraces in porcelain
- Sidewalks in porcelain tile
- Any Gator Tile System installation over Gator Base
What These Are For (Straight From the Manufacturer)
Exterior porcelain tile installations only. These are part of the Gator Tile System, not a general-purpose tile spacer.
They work with Gator Block Bond XP adhesive and Gator Tile Edge around the perimeter. Used on their own without the rest of the system they do not deliver the load transfer.
Not sure if your project qualifies? Call us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.
How to Use Gator Spacers
The full step by step guide is in the official documentation below. Here is the shape of the job:
- Install Gator Base panels, extending 6 in beyond the tiled area on all sides.
- Set the spacers at the tile corners, cutting to half or quarter disks at the edges and perimeter.
- Apply Gator Block Bond XP onto the spacers and set the tiles.
- Fit Gator Tile Edge around the perimeter, fastened to the Gator Base with Gator Base Screws.
Quick Answers
How many spacers do I need?
Multiply your square footage by Alliance's factor for your tile size: 0.4 for 16x16, 0.35 for 18x18 and 20x20, 0.75 for 24x24, 0.29 for 36x36.
What are the colors?
Blue is 1/8 in, grey is 3/16 in, black is 1/4 in.
Can I cut them?
Yes. Alliance says the disk can be cut into a half or quarter unit, and the bars can be removed to leave a flat disk for mid-field support on large tiles.
Do I need Gator Base to use these?
They are designed as part of the Gator Tile System, which puts porcelain directly on Gator Base panels with Block Bond adhesive.
How many in a pack?
50 spacers per pack, and 6 packs per box.
What adhesive do they use?
Gator Block Bond XP polyurethane.
Official Alliance Gator Documentation
Download the Gator Spacers TDS (PDF) →
Documents are published by Alliance Gator. They open in a new tab. Every sheet we carry is also listed in our TDS and SDS library.
Pairs Well With
- Gator Base panels, what the tile sits on.
- Gator Block Bond XP, the adhesive for the system.
- Gator Tile Edge, the perimeter edge, in the Gator Edge listing.
Order before our daily cutoff and your Gator Spacers ships today from New Jersey.
Questions about your project? Call (856) 418-4895 and you will get a real person who works with porcelain tile systems every day.
Data sheets
Data sheets
The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
