Alliance  |  SKU: NGF44NW-03100
Sold out

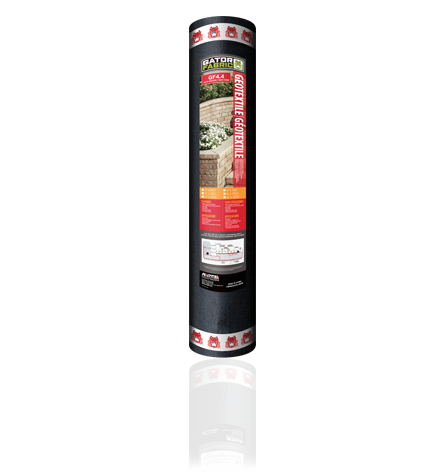

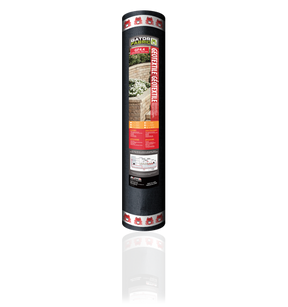

Alliance Gator Fabric GF4.4 Non-Woven Geotextile

$90.99
Size

Ships same day on weekday orders placed before the 14:00 ET cut-off.

Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.

Request a pallet quoteHow much do I need?Call (856) 418-4895

Ships fromWilliamstown, NJ (our warehouse)Sold byPolymeric Sand StorePaymentSecure checkout by ShopifyReturnsSee our return policy
Type
Landscape Fabric
Sizes
3 ft x 100 ft, 4 ft x 100 ft, 6 ft x 100 ft, 6 ft x 300 ft, 12 ft x 400 ft

About this item

  • The Gator Base fabric. Alliance step 3: cover the excavated area and sides with Gator Fabric GF4.4.
  • 4.4 oz per sq yd (150 gsm) needle-punched non-woven polypropylene, hydrophilic treated.
  • 120 lbf (535 N) grab tensile in both directions, ASTM D4632, at 75 to 80 percent elongation.
  • 135 gal/min/sq ft flow. High enough to keep a drainage layer working while it separates.
  • Also the geotextile under Gator X-Turf.
  • Five roll sizes from a 3 ft handroll to a 12 ft x 400 ft contractor roll.
See the full description and data sheets

Shipping, pick-up and returns

Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.

Return and refund policy · Shipping policy

Alliance Gator Fabric GF4.4 Non-Woven Geotextile Add to cart
  • Ships Same DayFrom our NJ warehouse
  • 4.4 oz Non-Woven120 lbf grab tensile
  • Specified Under Gator BaseAnd under Gator X-Turf
  • Real Humans(856) 418-4895

Why Gator Fabric GF4.4?

The Non-Woven Grade Alliance Specifies Under Gator Base

If you are installing Gator Base panels, this is not a preference, it is the spec. Alliance names GF4.4 in step 3 of their own installation sequence and labels it on every diagram.

Full description and specs
  • The Gator Base fabric - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    The Gator Base fabric

    Alliance step 3: cover the excavated area and sides with Gator Fabric GF4.4.

  • 4.4 oz per sq yd (150 gsm) - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    4.4 oz per sq yd (150 gsm)

    Needle-punched non-woven polypropylene, hydrophilic treated.

  • 120 lbf (535 N) grab tensile - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    120 lbf (535 N) grab tensile

    In both directions, ASTM D4632, at 75 to 80 percent elongation.

  • 135 gal/min/sq ft flow - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    135 gal/min/sq ft flow

    High enough to keep a drainage layer working while it separates.

How to Install Gator Fabric GF4.4

The short version. Always follow the Alliance data sheet.

  1. Step 1: Level and compact - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    Level and compact

    The subgrade to within 3/8 in, sloped for drainage.

  2. Step 2: Roll the fabric out - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    Roll the fabric out

    Across the area and up the sides of the excavation.

  3. Step 3: Overlap seams by at least 12 in - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    Overlap seams by at least 12 in

    And stretch the fabric so no folds remain.

  4. Step 4: Place your bedding layer - Alliance Gator Fabric GF4.4 Non-Woven Geotextile

    Place your bedding layer

    On top: 3/4 in of sand compacted to 1/2 in, or ASTM No. 9 stone which needs no compaction.

Watch installation videosTechnical data sheet (PDF)Alliance PDF, opens in a new tab

Test a small area first.

Description

The Non-Woven Grade Alliance Specifies Under Gator Base

GF4.4 is the heavier separation and filtration geotextile: 4.4 oz, 120 lbf grab tensile and 135 gal/min/sq ft of flow. It is the grade named in every Gator Base cross-section and under Gator X-Turf, and the one to use behind retaining walls.

Ships Same Day
From our NJ warehouse		 4.4 oz Non-Woven
120 lbf grab tensile
Specified Under Gator Base
And under Gator X-Turf		 Real Humans
(856) 418-4895

Why Contractors Ask for Gator Fabric GF4.4 by Name

If you are installing Gator Base panels, this is not a preference, it is the spec. Alliance names GF4.4 in step 3 of their own installation sequence and labels it on every diagram.

  • The Gator Base fabric. Alliance step 3: cover the excavated area and sides with Gator Fabric GF4.4.
  • 4.4 oz per sq yd (150 gsm) needle-punched non-woven polypropylene, hydrophilic treated.
  • 120 lbf (535 N) grab tensile in both directions, ASTM D4632, at 75 to 80 percent elongation.
  • 135 gal/min/sq ft flow. High enough to keep a drainage layer working while it separates.
  • Also the geotextile under Gator X-Turf.
  • Five roll sizes from a 3 ft handroll to a 12 ft x 400 ft contractor roll.

Gator Fabric GF4.4 Specifications

Weight 4.4 oz per sq yd (150 gsm), ASTM D5261
Type Needle-punched non-woven polypropylene, hydrophilic treated
Grab tensile 120 lbf (535 N), machine and cross direction, ASTM D4632
Grab elongation 80 percent MD, 75 percent CD
Water flow 135 gal/min/sq ft (5,307 L/min/sq m)
Seam overlap Minimum 12 in (30 cm)
Roll sizes 3x100 (11 lb), 4x100 (15 lb), 6x100 (24 lb), 6x300 (54 lb), 12x400 (158 lb)

Where Gator Fabric GF4.4 Works

Alliance rates GF4.4 for:

  • Under Gator Base panels, the specified grade
  • Under Gator X-Turf artificial grass
  • Behind retaining walls
  • Paver sub-base foundations
  • Drainage control and erosion protection
  • Soil separation on soft or clay subgrade

Installation Requirements (Straight From the Manufacturer)

Overlap every seam by a minimum of 12 in (30 cm). A butted seam is a failure point.

Lay it over leveled, compacted soil within a 3/8 in (10 mm) tolerance, and stretch it so there are no folds or wrinkles under the aggregate.

Not sure if your project qualifies? Call us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.

How to Install Gator Fabric GF4.4

The full step by step guide is in the official documentation below. Here is the shape of the job:

  1. Level and compact the subgrade to within 3/8 in, sloped for drainage.
  2. Roll the fabric out across the area and up the sides of the excavation.
  3. Overlap seams by at least 12 in and stretch the fabric so no folds remain.
  4. Place your bedding layer on top: 3/4 in of sand compacted to 1/2 in, or ASTM No. 9 stone which needs no compaction.

GF3.5, GF4.4, GF5 or GF20? Picking the Right Gator Fabric

The grade numbers are not all weights, which trips people up. Here is what actually separates them:

  • GF20 Polyspun, 3 oz, 60 lbf. A weed barrier. The "20" is the warranty, not the weight. Not a base fabric.
  • GF3.5 Non-Woven, 3.5 oz, 80 lbf, 165 gal/min/sq ft. The light separation and drainage grade.
  • GF4.4 Non-Woven, 4.4 oz, 120 lbf, 135 gal/min/sq ft. The heavier grade, and the one specified under Gator Base.
  • GF5 Woven, 4.0 oz but 200 lbf at only 15 percent elongation. Reinforcement under load, not filtration.

Quick Answers

Which fabric goes under Gator Base?
GF4.4. Alliance names it in the installation steps and on every diagram in the Gator Base data sheet.

How much do I overlap the seams?
A minimum of 12 in (30 cm).

What is the difference from GF3.5?
GF4.4 is heavier at 4.4 oz against 3.5, and stronger at 120 lbf grab tensile against 80. GF3.5 flows slightly more water.

Can I use it behind a retaining wall?
Yes, Alliance lists that as an intended application.

Is it the right fabric under artificial turf?
Yes. Alliance specifies GF4.4 as the geotextile beneath Gator X-Turf.

Do I need to compact the bedding on top?
If you use sand, yes: spread 3/4 in and compact to 1/2 in. ASTM No. 9 stone needs no compaction.

Official Alliance Gator Documentation

Technical Data Sheet (TDS): Weight, grab tensile, flow rate, roll sizes and installation from Alliance Gator.
Download the GF4.4 TDS (PDF) →

Documents are published by Alliance Gator. They open in a new tab. Every sheet we carry is also listed in our TDS and SDS library.

Pairs Well With

Order before our daily cutoff and your Gator Fabric GF4.4 ships today from New Jersey.

Work Out Your Rolls →

Questions about your project? Call (856) 418-4895 and you will get a real person who works with geotextiles every day.

Data sheets

The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
