SRW Products  |  SKU: GSRW U350

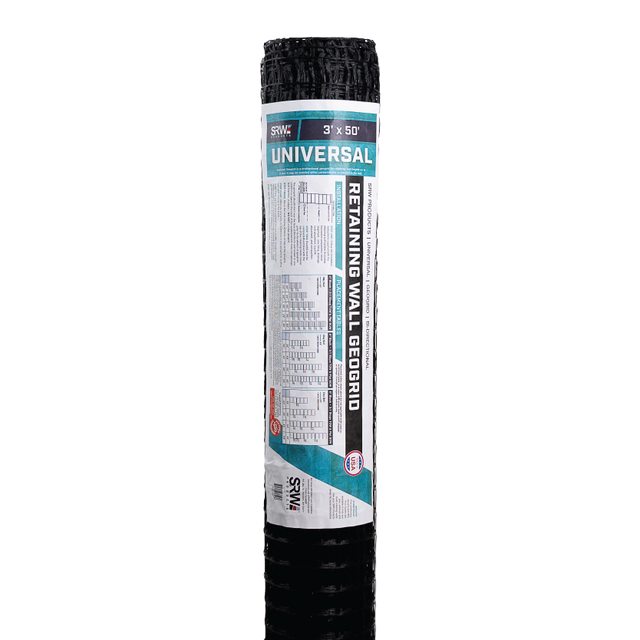

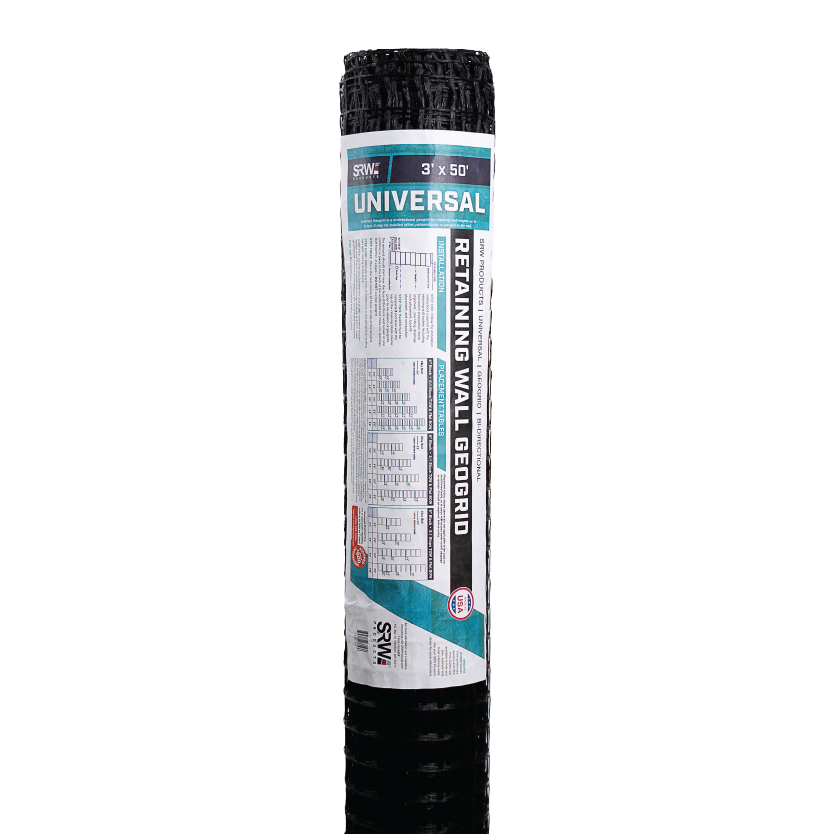

SRW Universal Geogrid for Retaining Walls

$79.99

Free hat or shirt with every order over $600. Pick your size in the cart, or see the gear.

Size

Ships same day on weekday orders placed before the 14:00 ET cut-off.

Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.

Request a pallet quoteHow much do I need?Call (856) 418-4895

Ships fromWilliamstown, NJ (our warehouse)Sold byPolymeric Sand StorePaymentSecure checkout by ShopifyReturnsSee our return policy
Type
Geogrid
Sizes
3 ft x 50 ft roll, 4 ft x 50 ft roll, 6 ft x 50 ft roll

About this item

  • Long-term design strength (LTDS) of 688 lb/ft, for walls up to 6 ft.
  • Bi-directional strength: usable in either roll direction.
  • The practical choice for residential walls and terraces.
  • Transfers load from the wall face into the compacted soil mass.
See the full description and data sheets

Shipping, pick-up and returns

Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.

Return and refund policy · Shipping policy

SRW Universal Geogrid for Retaining Walls Add to cart
  • Ships Same DayFrom our NJ warehouse
  • 3 SizesPick yours above
  • Long-term design strength …Key spec
  • Real Humans(856) 418-4895

Why Universal Geogrid for Retaining Walls?

The Residential Wall Grid That Wastes Nothing

Walls do not fail on day one. They lean and bulge years later, when the soil finally wins against block that had nothing tying it back.

Full description and specs
  • Long-term design strength (LTDS) of 688 lb/ft, for walls up - SRW Universal Geogrid for Retaining Walls

    Long-term design strength (LTDS) of 688 lb/ft, for walls up

  • Bi-directional strength: usable in either roll direction - SRW Universal Geogrid for Retaining Walls

    Bi-directional strength: usable in either roll direction

  • The practical choice for residential walls and terraces - SRW Universal Geogrid for Retaining Walls

    The practical choice for residential walls and terraces

  • Transfers load from the wall face into the compacted soil - SRW Universal Geogrid for Retaining Walls

    Transfers load from the wall face into the compacted soil

Installation at a glance

The short version. Always follow the SRW Products data sheet.

  1. Step 1: Follow - SRW Universal Geogrid for Retaining Walls

    Follow

    The wall design: layer count, lengths and elevations come from the block system's tables or the engineer.

  2. Step 2: At - SRW Universal Geogrid for Retaining Walls

    At

    Each grid course, sweep the block clean and roll the grid back from the wall face over compacted backfill (strength direction perpendicular to the wall for uni-directional grids).

  3. Step 3: Set - SRW Universal Geogrid for Retaining Walls

    Set

    The next block course to pin the grid, pull it taut and pin the tail.

  4. Step 4: Backfill - SRW Universal Geogrid for Retaining Walls

    Backfill

    And compact in lifts before the next layer. Never run tracked equipment directly on the grid.

Watch installation videosSafety data sheet (PDF)SRW Products PDF, opens in a new tab

Test a small area first.

Description

The Residential Wall Grid That Wastes Nothing

A do-it-all bi-directional geogrid for residential segmental retaining walls up to 6 feet, with a long-term design strength of 688 pounds per foot. Because the strength runs both ways, offcuts are usable in either direction, which makes it the least wasteful grid for smaller projects with corners and curves.

Ships Same Day
From our NJ warehouse		 3 Sizes
Pick yours above		 Long-term design strength …
Key spec		 Real Humans
(856) 418-4895

Why Contractors Ask for Universal Geogrid for Retaining Walls by Name

Walls do not fail on day one. They lean and bulge years later, when the soil finally wins against block that had nothing tying it back.

  • Long-term design strength (LTDS) of 688 lb/ft, for walls up to 6 ft.
  • Bi-directional strength: usable in either roll direction.
  • The practical choice for residential walls and terraces.
  • Transfers load from the wall face into the compacted soil mass.

Where Universal Geogrid for Retaining Walls Works

Universal Geogrid for Retaining Walls is recommended by SRW Products for segmental retaining walls and slopes:

  • Segmental retaining walls
  • Steep slopes and tiered walls

Installation at a Glance

The full step by step guide is in the official TDS below. Here is the shape of the job:

  1. Follow. the wall design: layer count, lengths and elevations come from the block system's tables or the engineer.
  2. At. each grid course, sweep the block clean and roll the grid back from the wall face over compacted backfill (strength direction perpendicular to the wall for uni-directional grids).
  3. Set. the next block course to pin the grid, pull it taut and pin the tail.
  4. Backfill. and compact in lifts before the next layer. Never run tracked equipment directly on the grid.

Always test in a small discrete area first.

Quick Answers

Do I actually need geogrid?
Above 3 to 4 feet of wall height, or with slopes and loads above the wall, almost always yes. The block manufacturer's tables say exactly when and how much.

Which series do I need?
The wall design picks the grid, not the other way around. Match the LTDS your wall system's chart calls for, or call us at (856) 418-4895 with your wall height and we will walk it with you.

How far back does it go?
Typically 60 to 100 percent of wall height, per the design tables. Longer grid is cheap compared to rebuilding a leaning wall.

Is there anything I should know about handling it?
Wear gloves and eye protection, follow the label, and keep it away from children and pets until placed or cured. Full precautions are in the SDS below.

Official SRW Products Documentation

Certification Letter: Manufacturer certification for Universal Geogrid for Retaining Walls from SRW Products.
Download the Universal Geogrid for Retaining Walls Certification (PDF) →
Safety Data Sheet (SDS): Handling, safety precautions, and first aid information for Universal Geogrid for Retaining Walls.
Download the Universal Geogrid for Retaining Walls SDS (PDF) →

Documents are published by SRW Products. They open in a new tab. Every sheet we carry is also listed in our TDS and SDS library.

Order before our daily cutoff and your Universal Geogrid for Retaining Walls ships today from New Jersey.

Shop All SRW Products →  |  Talk to a Real Person →

Questions about your project? Call (856) 418-4895 and you will get a real person who works with retaining wall reinforcement every day.

Sizes in This Listing

All 3 sizes below ship from our warehouse in Williamstown, New Jersey. Pick yours from the drop-down above. Every one carries its own part number, so reordering the exact same item later is straightforward.

Size Part Number
3 ft x 50 ft roll GSRW U350
4 ft x 50 ft roll GSRW U450
6 ft x 50 ft roll GSRW U650

Data sheets

The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
