Alliance Gator Aqua Rock Permeable Paver Aggregate ASTM No. 9 Granite
Alliance Gator Aqua Rock Permeable Paver Aggregate ASTM No. 9 Granite is backordered and will ship as soon as it is back in stock.
Ships same day on weekday orders placed before the 14:00 ET cut-off.
Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.
Request a pallet quoteHow much do I need?Call (856) 418-4895
- Brand
- Alliance
- Type
- Polymeric Sand
About this item
- Graded to meet ASTM No. 9, the gradation permeable paver systems are specified around.
- High strength fractured granite, which locks together rather than rolling like rounded stone.
- Residential and commercial traffic rated, including driveways and parking lots.
- Reduces storm water runoff and helps prevent erosion.
- Doubles as bedding under Gator Base and needs no compaction there, unlike a sand bed.
- Calibrated for the majority of permeable pavers.
Shipping, pick-up and returns
Shipping, pick-up and returns
Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.
Alliance Gator Aqua Rock Permeable Paver Aggregate ASTM No. 9 Granite
Alliance Gator Aqua Rock Permeable Paver Aggregate ASTM No. 9 Granite is backordered and will ship as soon as it is back in stock.
How many bags do I need?
Coverage per bag comes from the manufacturer's data sheet for this exact sand.
Ships Same DayFrom our NJ warehouse
50 lb BagsGranite grey
ASTM No. 9 Graded20 to 25 sq ft per bag
Real Humans(856) 418-4895
Why Gator Aqua Rock?
ASTM No. 9 Granite for Permeable Paver Joints and Bedding
Permeable pavers only work if the joints stay open. Ordinary sand blinds them off within a season. ASTM No. 9 chip stone is the specified material, and Aqua Rock is Alliance's calibrated version.
Full description and specs
Graded to meet ASTM No. 9
The gradation permeable paver systems are specified around.
High strength fractured granite
Which locks together rather than rolling like rounded stone.
Residential and commercial traffic rated
Including driveways and parking lots.
Reduces storm water runoff
And helps prevent erosion.
How to Install Gator Aqua Rock
The short version. Always follow the Alliance data sheet.
-
Spread the bedding
Over the base course at 50 mm thickness.
-
Screed
To plus or minus 10 mm over a 3 m straight edge, and keep all traffic off it until paving starts.
-
Lay the pavers
Edge cuts no smaller than one third of a unit, at 45 degrees to traffic on vehicular work.
-
Sweep Aqua Rock into the joints
And sweep the paver faces clean of excess.
-
Compact
With a low amplitude 75 to 90 Hz plate of at least 4,000 lb centrifugal force, minimum two passes.
-
Check the joints
Are filled to 3 mm from the paver top and top up or remove as needed.
Test a small area first.
Goes with this
The usual companions for this job, at the same price as on their own pages.
-
This item: Alliance Gator Aqua Rock Permeable Paver Aggregate ASTM No. 9 Granite$58.99 -
$84.99
-
$39.99
Total for 1 items: $58.99
Same prices as buying them one at a time.
Description
Description
ASTM No. 9 Granite for Permeable Paver Joints and Bedding
Fractured high-strength granite calibrated to ASTM No. 9 gradation, the jointing and bedding aggregate permeable paver systems are designed around. Rated for residential and commercial traffic, and it also works as the no-compaction bedding under Gator Base. 50 lb bags.
|
Ships Same Day From our NJ warehouse |
50 lb Bags Granite grey |
|
ASTM No. 9 Graded 20 to 25 sq ft per bag |
Real Humans (856) 418-4895 |
Why Contractors Ask for Gator Aqua Rock by Name
Permeable pavers only work if the joints stay open. Ordinary sand blinds them off within a season. ASTM No. 9 chip stone is the specified material, and Aqua Rock is Alliance's calibrated version.
- Graded to meet ASTM No. 9, the gradation permeable paver systems are specified around.
- High strength fractured granite, which locks together rather than rolling like rounded stone.
- Residential and commercial traffic rated, including driveways and parking lots.
- Reduces storm water runoff and helps prevent erosion.
- Doubles as bedding under Gator Base and needs no compaction there, unlike a sand bed.
- Calibrated for the majority of permeable pavers.
Gator Aqua Rock Specifications
| Bag weight | 50 lb (22.7 kg), 56 per pallet |
| Bulk option | 2,200 lb super-sack, 1 per pallet |

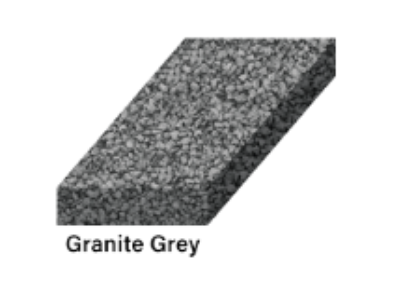

| Color | Granite grey |
| Gradation | ASTM No. 9: 3/8 in sieve 100, No. 4 85-100, No. 8 10-40, No. 16 0-10, No. 50 0-5 |
| Coverage, 50 lb bag | 20 to 25 sq ft on a 2-3/8 in paver |
| Coverage, super-sack | 880 to 1,100 sq ft |
| Bedding course | 50 mm, screeded to plus or minus 10 mm over a 3 m straight edge |
| Minimum subgrade slope | 0.5 percent |
| Minimum finished surface slope | 1 percent |
| Compaction | Low amplitude 75 to 90 Hz plate, minimum 4,000 lb centrifugal force, at least two passes |
20 to 25 sq ft per 50 lb bag on a standard 2-3/8 in paver, varying with paver shape and joint width. Larger jobs are far cheaper by the super-sack, call (856) 418-4895.
Where Gator Aqua Rock Works
Alliance rates Gator Aqua Rock for:
- Permeable paver joints
- Bedding course under permeable pavers
- Driveways, parking lots, patios and walkways
- Concrete pavers and wet cast products
- Foundation material under Gator Base, with no compaction needed
Where Gator Aqua Rock Should NOT Be Used (Straight From the Manufacturer)
No mud or sediment may be left on the base or bedding. Contaminated material must be removed and replaced, not just raked over.
Do not walk or drive on screeded bedding before paving starts.
Minimum 0.5 percent subgrade slope and 1 percent finished surface slope.
Cut pavers no smaller than one third of a whole unit. Take care not to damage drainpipes during compaction.
Not sure if your project qualifies? Call us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.
How to Install Gator Aqua Rock
The full step by step guide is in the official documentation below. Here is the shape of the job:

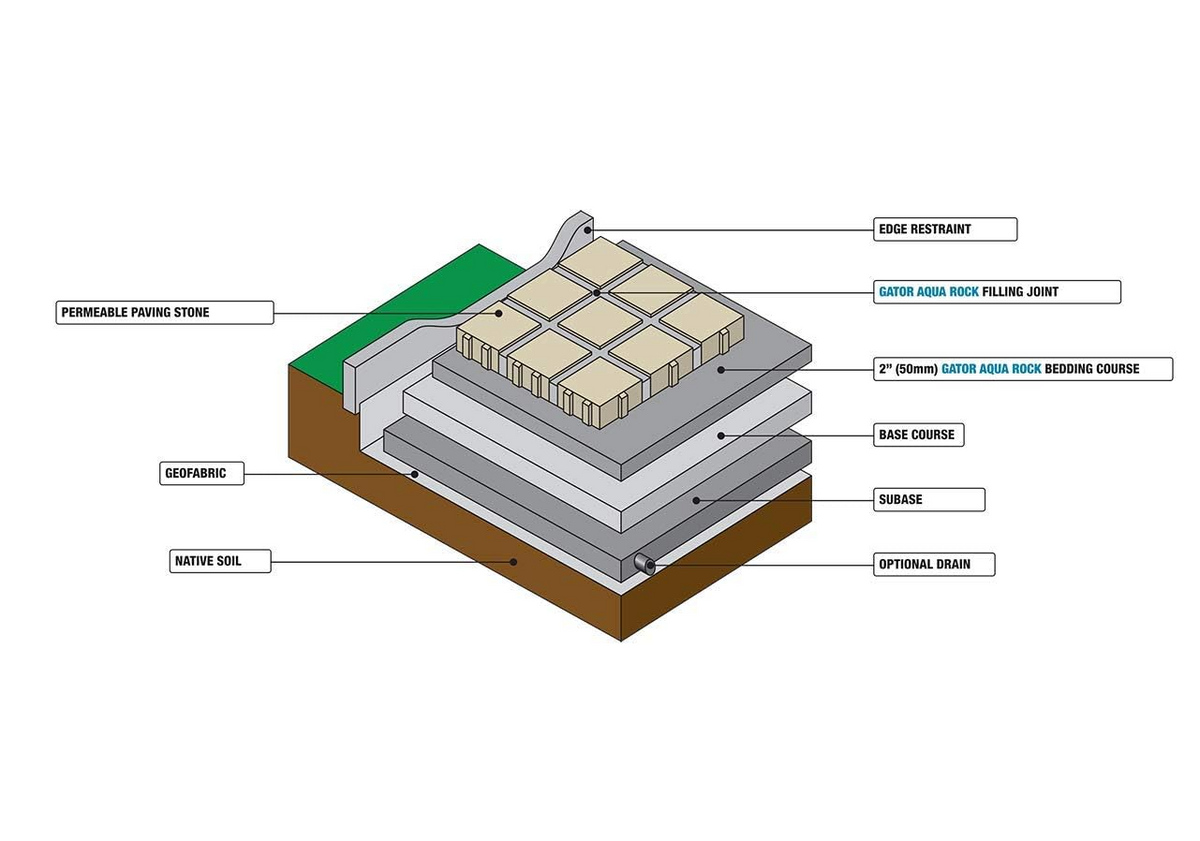

- Spread the bedding over the base course at 50 mm thickness.
- Screed to plus or minus 10 mm over a 3 m straight edge, and keep all traffic off it until paving starts.
- Lay the pavers, edge cuts no smaller than one third of a unit, at 45 degrees to traffic on vehicular work.
- Sweep Aqua Rock into the joints and sweep the paver faces clean of excess.
- Compact with a low amplitude 75 to 90 Hz plate of at least 4,000 lb centrifugal force, minimum two passes.
- Check the joints are filled to 3 mm from the paver top and top up or remove as needed.
Why Permeable Systems Use Chip Stone, Not Sand
A permeable paver only performs if water can get through the joint, and that is entirely down to what is in it.
- Sand blinds the joint. Fines migrate down, fill the voids and the surface stops draining within a season or two.
- ASTM No. 9 chip stone has almost no fines by design, 0 to 5 percent passing the No. 50 sieve, so the voids stay open.
- Fractured, not rounded. Angular granite interlocks and resists rutting. Rounded pea gravel rolls.
- Same material top and bottom. Aqua Rock works as both bedding and joint fill, which keeps the system consistent.
Data sheets
Data sheets
The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
