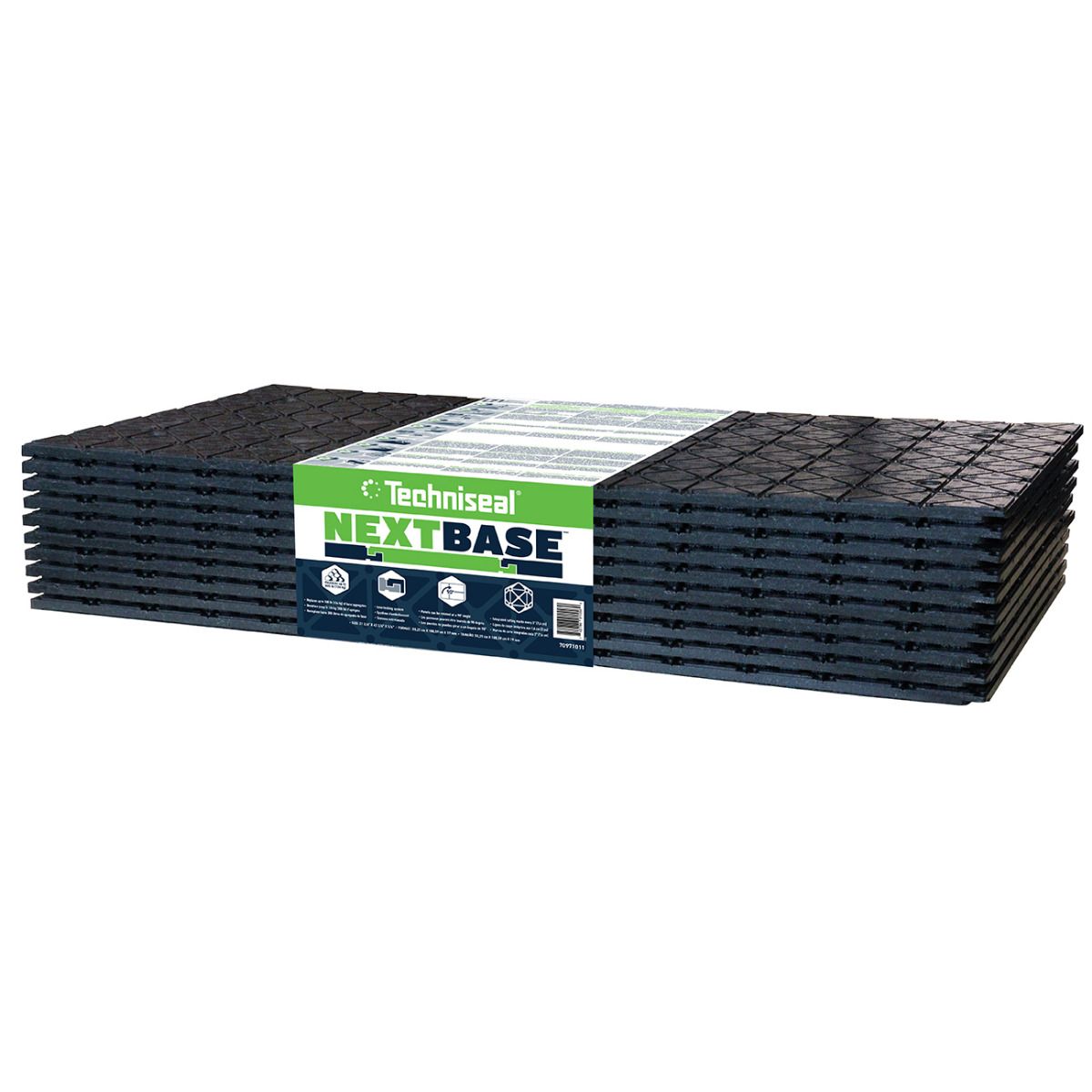

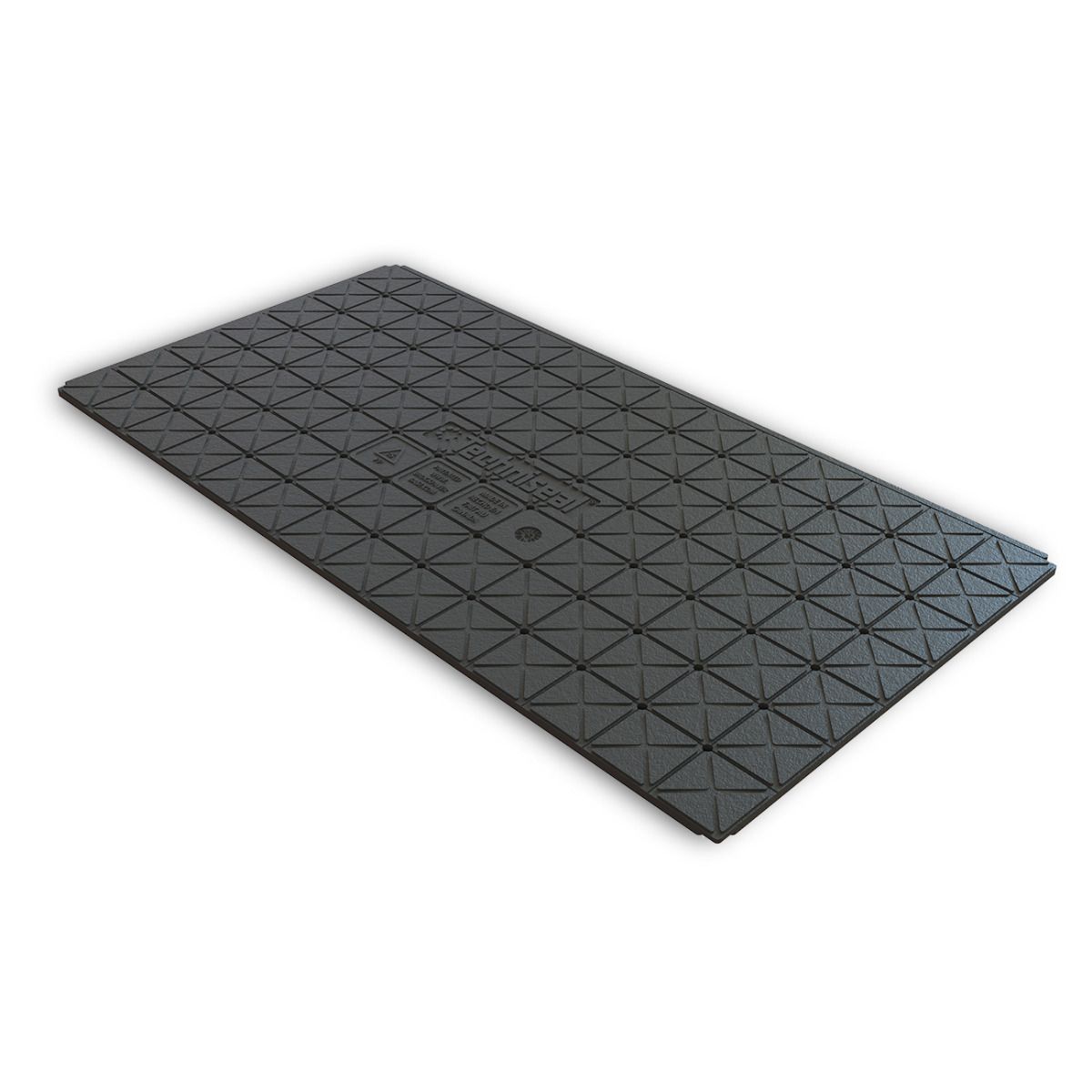

Techniseal NextBase Paver Base Panel System – 10 Panel Pack
Techniseal NextBase Paver Base Panel System – 10 Panel Pack is backordered and will ship as soon as it is back in stock.
Ships same day on weekday orders placed before the 14:00 ET cut-off.
Typically 1 to 5 business days by UPS, FedEx Ground or USPS. Enter your ZIP for your dates.
Request a pallet quoteHow much do I need?Call (856) 418-4895
- Brand
- Techniseal
- Type
- Paver Base Products
About this item
- Each panel replaces up to 300 lb of base aggregate. Multiply that across a patio and the saving in delivered material, labor, and spoil removal is substantial.
- It cuts excavation depth by up to 8 inches. Shallower digging means less spoil, less disposal, and far less disruption to roots, services, and lawns.
- The panels interlock. Techniseal specifies that the interlocking system gives easier installation and superior stability compared with loose panels butted together.
- Panels rotate 90 degrees. That flexibility matters when you are working a base into an irregular shape rather than a clean rectangle.
- Cutting marks every 3 inches. Customizing panel dimensions on site is fast and accurate without measuring every cut from scratch.
- Drainage is engineered in. Built in drainage holes, slopes, and channels rather than relying on the aggregate below to move water.
Shipping, pick-up and returns
Shipping, pick-up and returns
Orders ship from Williamstown, New Jersey by UPS, FedEx Ground or USPS; weekday orders placed before 2 PM Eastern go out the same day. Warehouse pick-ups (call first so we can pull your order) and drop-off returns Monday to Friday 8 to 5, Saturday 8 to noon.
Techniseal NextBase Paver Base Panel System – 10 Panel Pack
Techniseal NextBase Paver Base Panel System – 10 Panel Pack is backordered and will ship as soon as it is back in stock.
How many bags do I need?
Coverage per bag comes from the manufacturer's data sheet for this exact sand.
300 lb Of Aggregate SavedPer panel, and 8 in of excavation
6 1/8 sq ft per PanelInterlocking, rotatable 90 degrees
Cut Marks Every 3 inCustomize panel size on site
Built In DrainageHoles, slopes, and channels
Why NextBase Panel Base System?
One Panel Replaces Up To 300 Pounds Of Aggregate And 8 Inches Of Digging
The expensive part of a paver patio is rarely the pavers. It is the excavation, the aggregate delivery, the wheelbarrowing, and the disposal of the spoil. A panel base attacks all four at once.
Full description and specs
Each panel replaces up to 300 lb of base aggregate
Multiply that across a patio and the saving in delivered material, labor, and spoil removal is substantial.
It cuts excavation depth by up to 8 inches
Shallower digging means less spoil, less disposal, and far less disruption to roots, services, and lawns.
The panels interlock
Techniseal specifies that the interlocking system gives easier installation and superior stability compared with loose panels butted together.
Panels rotate 90 degrees
That flexibility matters when you are working a base into an irregular shape rather than a clean rectangle.
Description
Description
One Panel Replaces Up To 300 Pounds Of Aggregate And 8 Inches Of Digging
NextBase is Techniseal panel base system for pedestrian paver installations. Each panel takes the place of up to 300 lb of base aggregate and 8 inches of excavation depth. On a back garden with no machine access, that is the difference between a job you can quote and one you cannot. Panels interlock for stability, rotate 90 degrees for layout flexibility, carry cutting marks every 3 inches, and have built in drainage holes, slopes, and channels.
|
300 lb Of Aggregate Saved Per panel, and 8 in of excavation |
6 1/8 sq ft per Panel Interlocking, rotatable 90 degrees |
|
Cut Marks Every 3 in Customize panel size on site |
Built In Drainage Holes, slopes, and channels |
Why Contractors Ask for NextBase Panel Base System by Name
The expensive part of a paver patio is rarely the pavers. It is the excavation, the aggregate delivery, the wheelbarrowing, and the disposal of the spoil. A panel base attacks all four at once.
- Each panel replaces up to 300 lb of base aggregate. Multiply that across a patio and the saving in delivered material, labor, and spoil removal is substantial.
- It cuts excavation depth by up to 8 inches. Shallower digging means less spoil, less disposal, and far less disruption to roots, services, and lawns.
- The panels interlock. Techniseal specifies that the interlocking system gives easier installation and superior stability compared with loose panels butted together.
- Panels rotate 90 degrees. That flexibility matters when you are working a base into an irregular shape rather than a clean rectangle.
- Cutting marks every 3 inches. Customizing panel dimensions on site is fast and accurate without measuring every cut from scratch.
- Drainage is engineered in. Built in drainage holes, slopes, and channels rather than relying on the aggregate below to move water.
- It works under a wide range of surfaces: concrete pavers, natural stone, concrete slabs, interlocking pavers, porcelain tile, and wet cast pavers.
NextBase Panel Base System Specifications
| Product Type | Panel base system for pavers |
| Pack Size | 10 panel pack |
| Coverage per Panel | 6 1/8 sq ft, or 0.57 sq m |
| Coverage per 10 Panel Pack | Approximately 61 sq ft |
| Aggregate Replaced | Up to 300 lb per panel |
| Excavation Depth Saved | Up to 8 in |
| Panel System | Interlocking, rotatable 90 degrees |
| Cutting Marks | Every 3 in |
| Drainage | Built in holes, slopes, and channels |
| Traffic Rating | Pedestrian installations |
| Surface Level | Flat |
| Approved Surfaces | Concrete pavers, natural stone, concrete slabs, interlocking pavers, porcelain tile, wet cast pavers |
| Manufacturer | Techniseal |
Each panel covers 6 1/8 sq ft, so a 10 panel pack covers approximately 61 sq ft before allowing for cuts and waste. On an irregular shape, add a margin. Give us your square footage and we will work out the pack count.
Where NextBase Panel Base System Works
NextBase earns its keep wherever machine access is limited or excavation is a problem.
- Back garden patios with no machine or truck access
- Rooftop terraces and balconies where load and depth are limited
- Pool decks and surrounds
- Walkways, sidewalks, and garden paths
- Seating wall bases
- Sites where excavation would disturb tree roots or buried services
- Urban courtyards where spoil removal is expensive
- Porcelain and natural stone pedestrian installations
Where NextBase Panel Base System Should NOT Be Used (Straight From the Manufacturer)
This is rated for pedestrian installations. Techniseal is explicit about that. Do not use NextBase under a driveway or any vehicular surface.
Techniseal lists flat surface level. Sloped installations need a different approach.
A panel base does not remove the need for correct subgrade preparation. The ground beneath still has to be properly prepared and compacted per the instructions.
Read the current technical data sheet for subgrade, bedding, and edge restraint requirements before you start.
Not sure if your project qualifies? Call us at (856) 418-4895 before you order. We will give you a straight answer, even if the answer is that this is not the right product for your job.
Data sheets
Data sheets
The manufacturer's technical data sheet (coverage, joint width, cure and rain-safe times) and safety data sheet are collected in the TDS and SDS library. Every figure on this page comes from those sheets.
